XD015H120BM1S3芯達茂國產IBGT +FRD單管 15A 1200V TO-247-3L
15A 1200V TO-247-3L
24小時全國服務熱線：18902855590
24小時全國服務熱線：18902855590
首頁 ? 產品中心 ? 芯達茂XDM
Trench Field-Stop Technology IGBTFeatures
? 1200V, 15A
? VCE(sat)(typ.) =1.8V@VGE=15V, IC=15A
? Low Switching Losses
? VCE(sat) with Positive Temperature Coefficient
? Pb-free Lead Plating; RoHS CompliantApplications
? Frequency Converters
? Uninterrupted Power Supply
? Air Conditioning
? Motor Drives

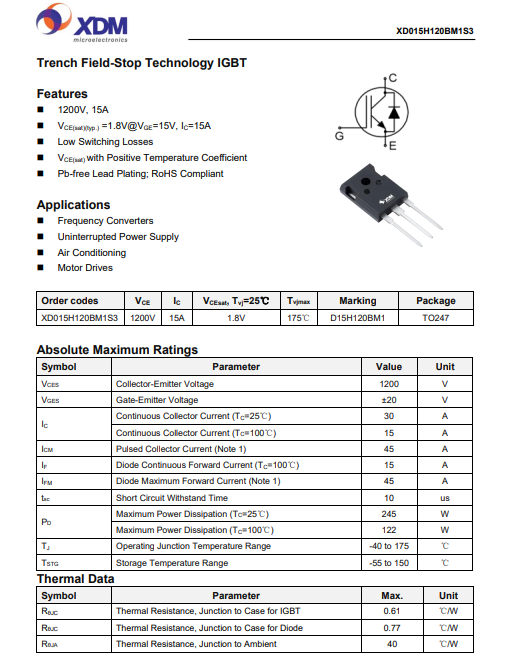

部分資料如下：
